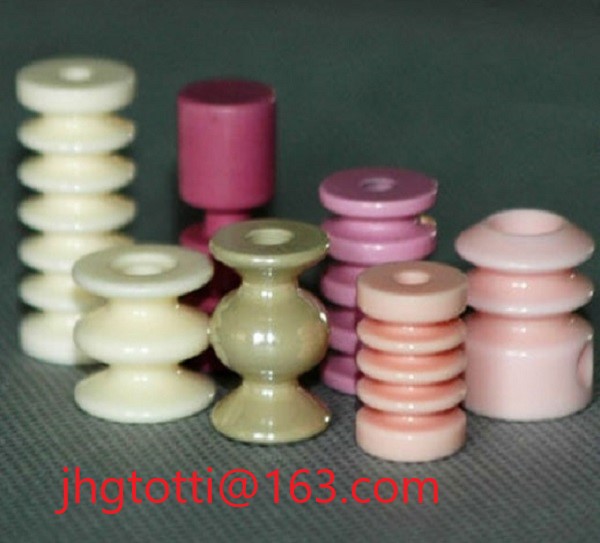

Alumina(Al2O3)Textile Ceramic Eyelets
Industrial Ceramic Parts Textile ceramic Yarn Guide
Alumina ceramic is kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal conductivity, dielectric loss, stable electrical performance characteristics. Used in electronic ceramic substrates, ceramic electrical insulation, vacuum devices, devices porcelain, spark plugs and other products. We can make the part by hot injection pressing, dry pressing, isostatic pressing and extrusion productive technology etc
We can supply the products according to customer's drawings, samples and performance requirement.
Ceramic Eyelets Features
A. High hardness.
B. High heat resistance : Alumina ceramic has execellent themal stability,which means that it is widely used in areas where resistance to high temperatures is essential.
C. Good wear resistance : Alumina ceramic is the material of choice for alumina wear parts.
D. High electrical resistivity : Alumina is an electrically insulating material.
E. High corrosion resistance : It is insoluble in water and only slightly soluble in strong acid and alkaline solutions. Good chemical stability of alumina leads to high corrosion resistance.
Specification
| Material code | characteristics | Density(g/cm³) | Young's Moulus(GPa) | Flexural strength(MPa) | Fracture Toughness(MPa*m1/2) | Thermal Expansion RT~800°) | Thermal Conductivity(w/m*k) | Volume Resistivity(Ω*cm) |
| ALP01 | General Purpose High Rigidiy | 3.9 | 370 | 440 | 3~4 | 7.7 | 33 | ＞10⋀14 |
| Alumina99.5% |
| ALP02 | High Purity High Rigidity | 3.9 | 370 | 450 | 3~4 | 7.9 | 30 | ＞10⋀14 |
| Alumina99.9% |
Our Company
Wuxi Special Ceramic Electrical mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.
quality guarantee:mass produce by 100% inspection
Product Tags:
|
|

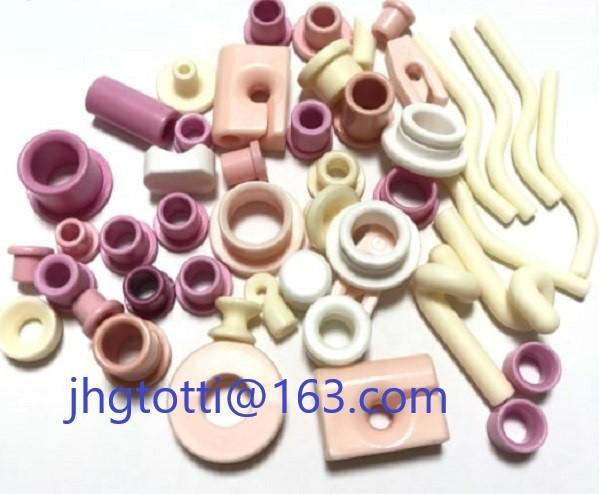

Textile Ceramic Yarn Guide Industrial Ceramic Parts Polishing Finished Images
|
